Electronic 4-Outlet Ignition Assembly Kit
$39.99
Out of stock
SKU
CUI104A

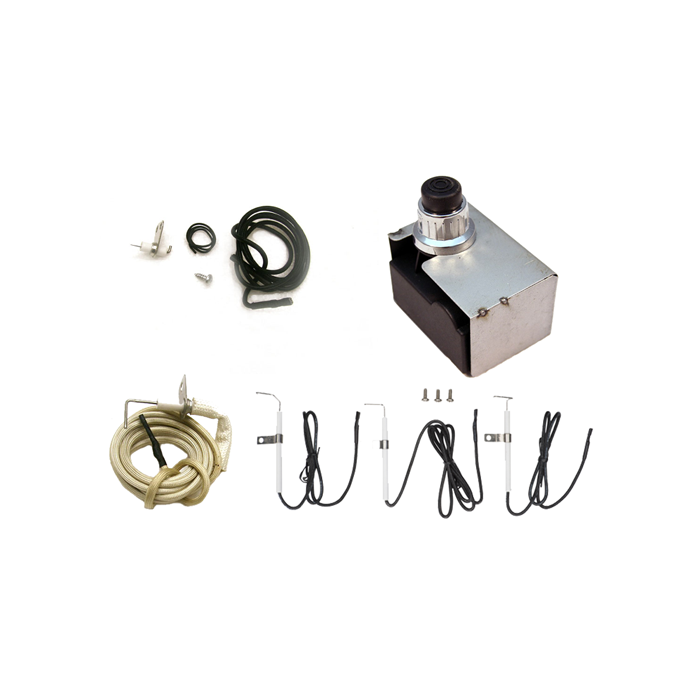

Qty. 1 x Electronic 4-Outlet Ignition
Qty. 1 x Side Burner Electrode Set
Qty. 1 x Main Burner Electrode Set
Qty. 1 x Rotisserie Burner Electrode Set
- Electronic 4-outlet ignition & push-button
- Ceramic electrode & 36 3/4" wire for side burner
- Ceramic electrode & 59" wire for rotisserie burner
- Set of 3 ceramic electrodes & 19 1/2" wire for main burner
- Steel ignition windshield & mounting hardware included
This kit includes a 4-outlet ignition module. Please read below for assembly details.
Qty. 1 x Side Burner Electrode Set
Qty. 1 x Main Burner Electrode Set
Qty. 1 x Rotisserie Burner Electrode Set
- Electronic 4-outlet ignition & push-button
- Ceramic electrode & 36 3/4" wire for side burner
- Ceramic electrode & 59" wire for rotisserie burner
- Set of 3 ceramic electrodes & 19 1/2" wire for main burner
- Steel ignition windshield & mounting hardware included
This kit includes a 4-outlet ignition module. Please read below for assembly details.
INSTALLATION INSTRUCTIONS
3 Burner BBQ models with Side Burner and Rotisserie Burner
- Ensure that only two outputs are used for 2 main BBQ burners while using the other two outputs for the side burner & rotisserie. The third burner will light using the carryover assembly.
- Alternatively, you could choose to leave either the rotisserie or side burner unplugged and plug in all 3 main burner electrodes.
For 4 Burner BBQ models with Side Burner and Rotisserie Burner
- Ensure that only two outputs are used for 2 main BBQ burners while using the other two outputs for the side burner and rotisserie. Your third and 4th burner will light using the carryover assembly.
- Alternatively, you could choose to leave either the rotisserie or side burner unplugged and plug in 3 main burner electrodes.
3 Burner BBQ models with Side Burner and Rotisserie Burner
- Ensure that only two outputs are used for 2 main BBQ burners while using the other two outputs for the side burner & rotisserie. The third burner will light using the carryover assembly.
- Alternatively, you could choose to leave either the rotisserie or side burner unplugged and plug in all 3 main burner electrodes.
For 4 Burner BBQ models with Side Burner and Rotisserie Burner
- Ensure that only two outputs are used for 2 main BBQ burners while using the other two outputs for the side burner and rotisserie. Your third and 4th burner will light using the carryover assembly.
- Alternatively, you could choose to leave either the rotisserie or side burner unplugged and plug in 3 main burner electrodes.
| SKU | CUI104A |
|---|---|
| Part No | CUI104-A |
| Part Type | Ignitors\Electrodes\Collector Boxes |
| Compatible | G51213 G51214 G51217 G51218 |
